1. Bar online automatic counting function:

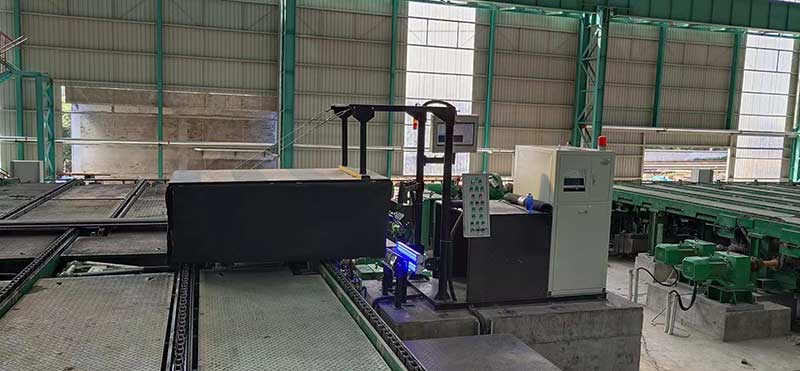

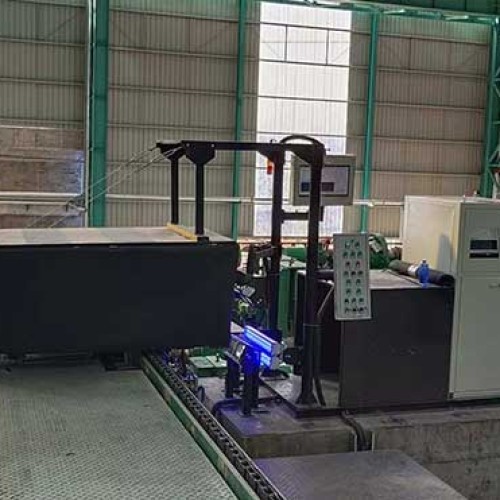

The “online automatic counting system” is a bar automatic counting device that uses machine vision for object recognition, object tracking, and automatic positioning technology. The system collects images of bars moving on the chain bed and transmits them to the upper computer. After image recognition and target tracking, it achieves real-time counting function in the bar production process; When the count value of each bundle reaches the set value, the control chain bed stops, indicating the automatic steel splitting position, guiding or controlling the start and stop of the steel moving machine, and can be used to display the steel splitting position in real time to guide the steel splitting. The system enters the next working cycle.
2. Automatic online steel splitting function for bar materials:
The “automatic steel separation system” is a steel bar automatic separation device that performs target recognition, target tracking, and automatic separation technology based on precise counting. When the count value of each bundle reaches the set value, the control chain bed stops and indicates the automatic steel splitting position. The system makes a decision on the steel splitting action based on the feedback of the bar distribution information from the visual detection module, selects the appropriate steel splitting action, and the steel splitting control module controls the mechanical action to complete the automatic steel splitting work. The system enters the next working cycle.
The technical indicators are:
1) The counting error of steel bars with specifications ranging from 12 to 40 is calculated based on the number of strands and is less than or equal to ± 0.06 ‰.
For steel bars stacked no more than 2 layers, the average separation time at the ends is ≤ 5s;
When the serious situation of interweaving and stacking cannot be separated, the system prompts an alarm for manual intervention.
2) The system automatically provides the steel separation line and prompts the steel separation position; Set the quantity of each bundle arbitrarily and support measuring and packaging according to the rated quantity.
